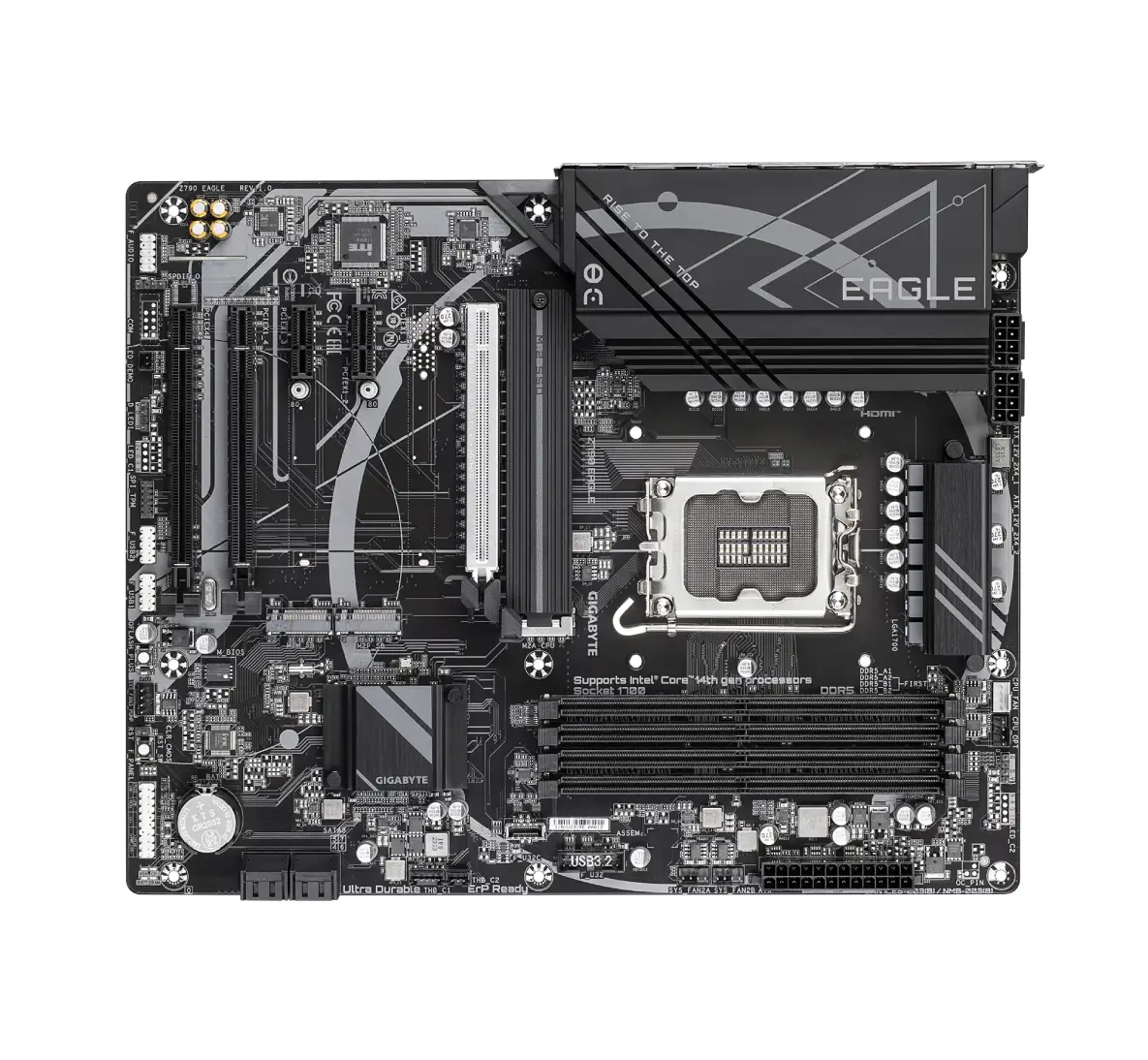

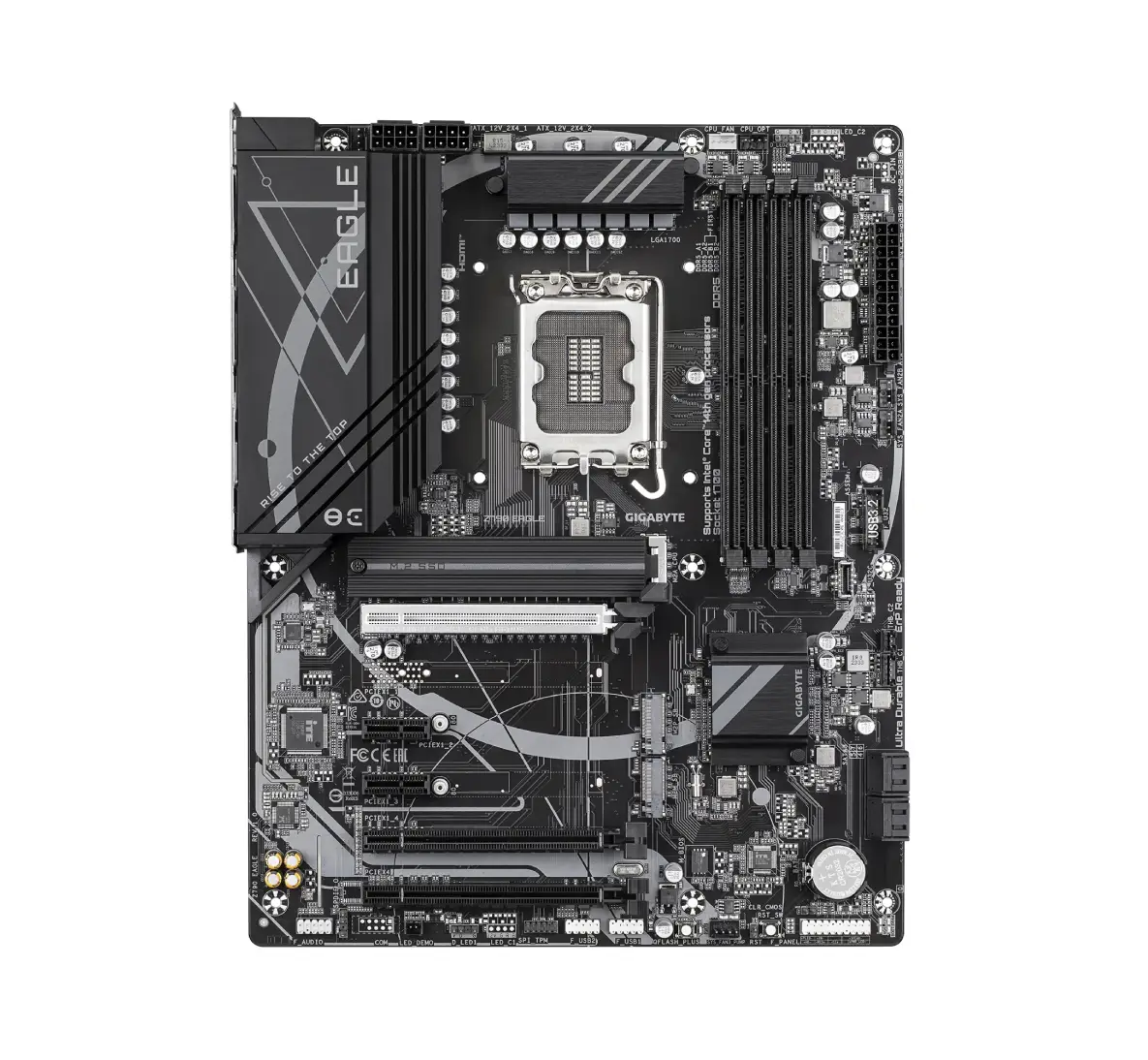

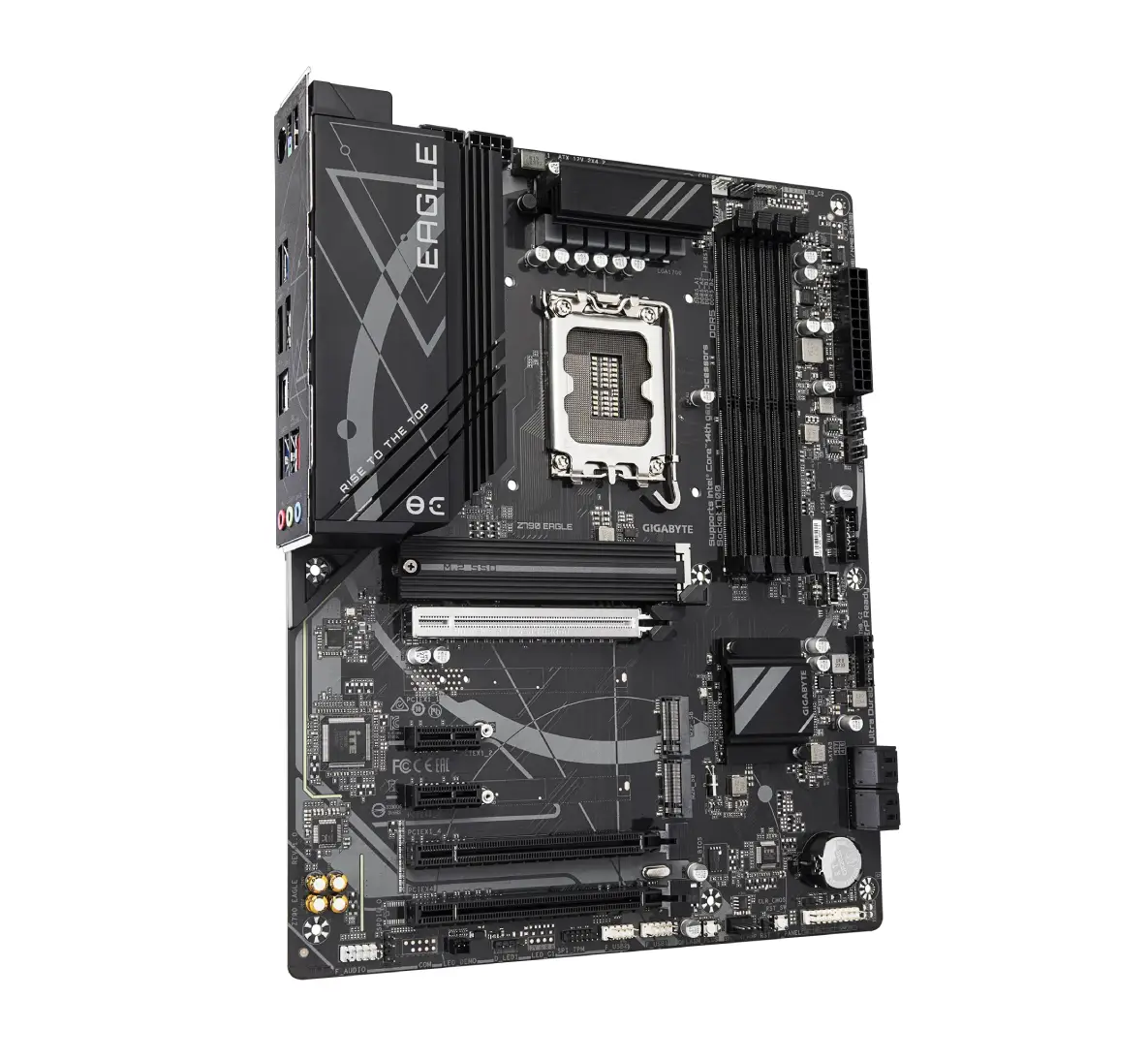

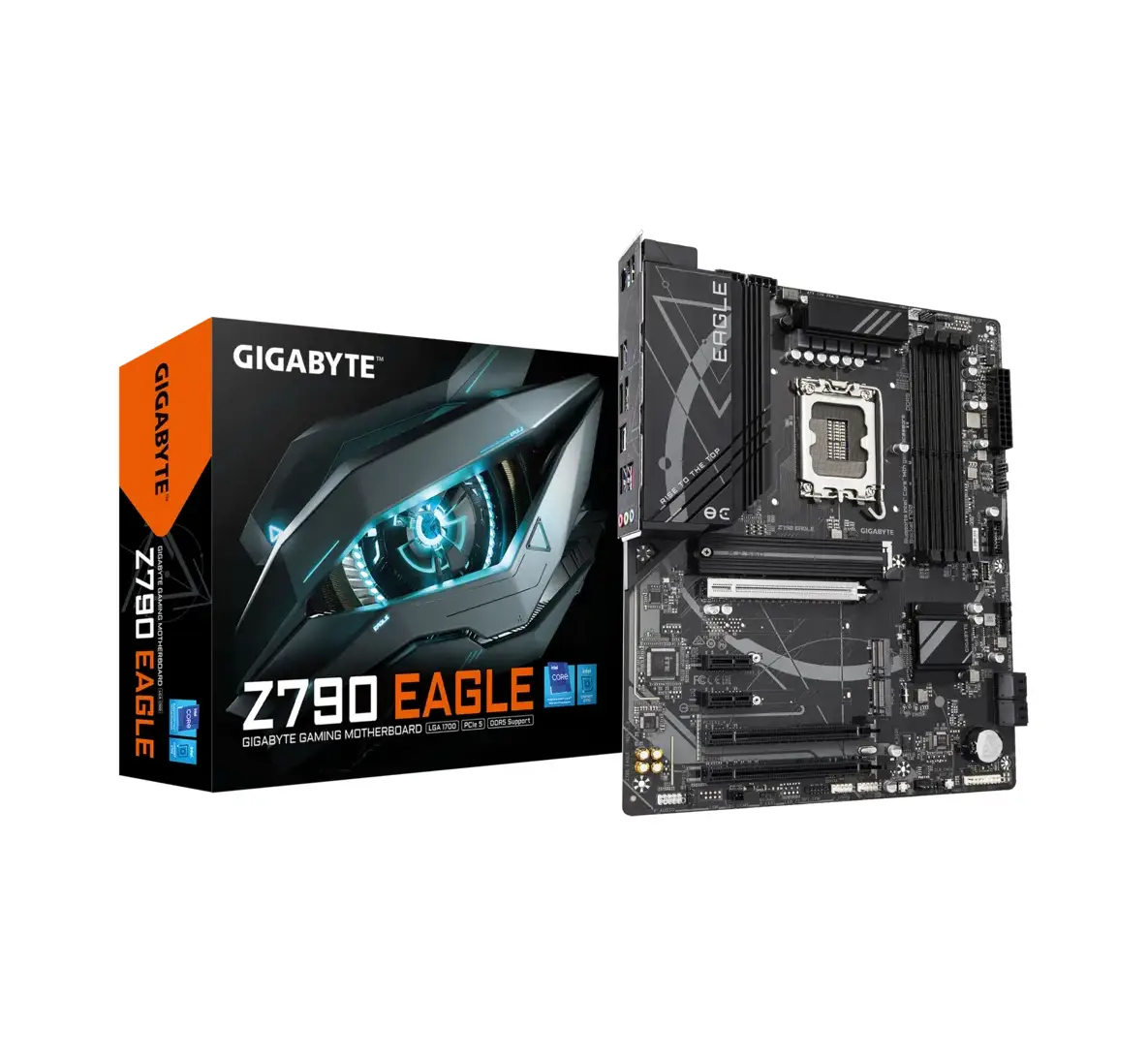

Gigabyte Z790 Eagle LGA1700 DDR5 ATX Gaming Motherboard

GIGABYTE Z790 EAGLE – Highlights & Specifications

• Processor & Chipset Support
  Supports Intel 14th, 13th, and 12th Generation Core series CPUs with the Z790 chipset.

• Power Delivery / VRM
  Equipped with a 12 + 1 + 1 phase digital VRM design using high-quality MOSFETs for stable power delivery under load.

• Memory / RAM
  Dual-channel DDR5 support across 4 DIMM slots, with compatibility for XMP 3.0 memory profiles.

• Expansion / Storage

  • PCIe 5.0 x16 slot with EZ-Latch for easy GPU installation/removal.

  • Three M.2 slots (PCIe 4.0 x4) with M.2 Thermal Guard for better heat management.

• Connectivity & Ports

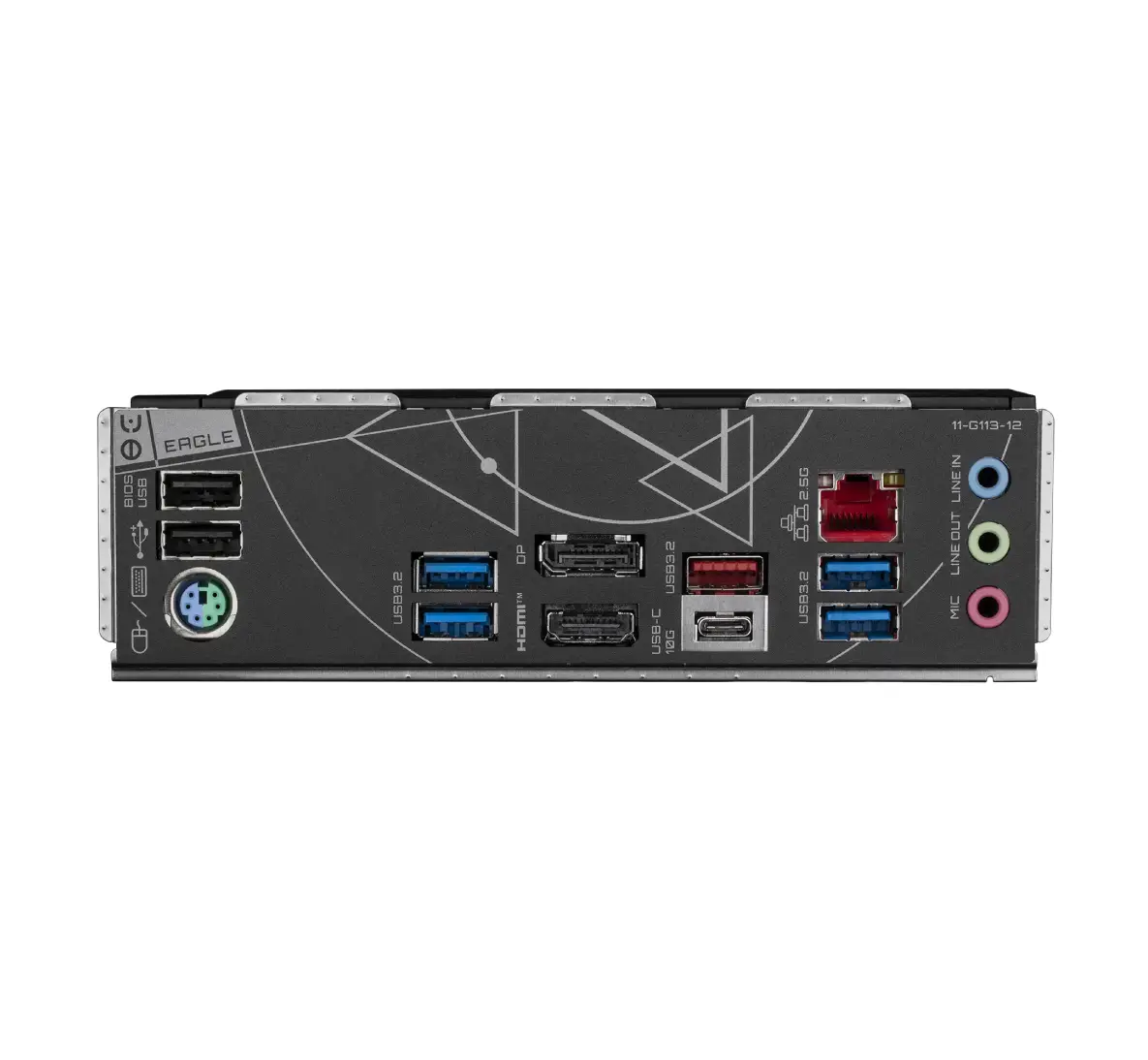

  • Rear I/O includes USB-C 10 Gb/s, USB 3.2 Gen 2, HDMI & DisplayPort outputs.

  • Networking: 2.5 GbE LAN

  • Fan / cooling: Smart Fan 6 system with multiple temperature sensors, hybrid fan headers, and fan-stop / zero RPM options.

• BIOS & Ease-of-Use Features

  • Q-Flash Plus for updating BIOS without CPU, memory, or GPU installed.

  • EZ-Latch on PCIe slot simplifies graphics card installation/removal.

  • UC BIOS user-centric interface with Quick Access, PerfDrive modes, and intuitive navigation.

• Thermal Design & Build
  Huge MOSFET heatsink (one-piece design) for efficient heat dissipation.
  Uses a 6-layer PCB with 2× copper for improved signal integrity and thermal control.

• Other Features

  • High-end audio system: High-quality audio capacitors and an “Audio Noise Guard” layout for cleaner audio signal. GIGABYTE

  • Stylish design with black/metal accents and subtle RGB / LED slot headers.
